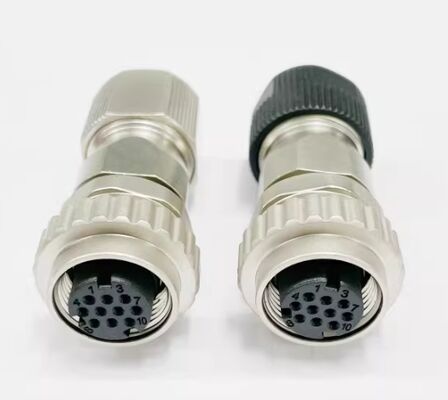

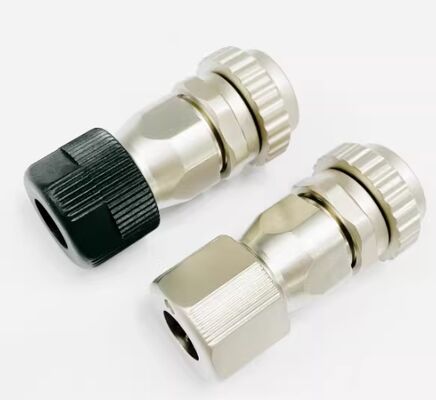

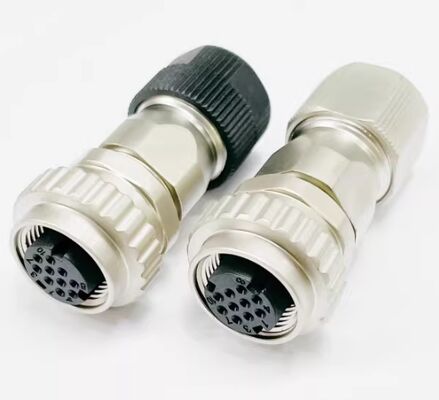

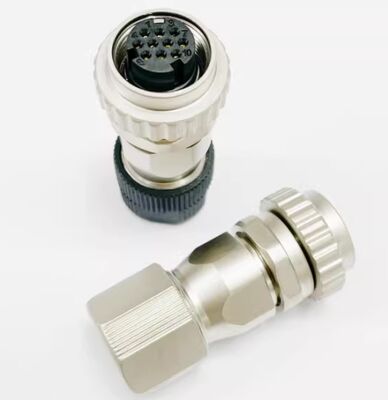

DDK-10P Servo Motor Connector with 1000V Voltage Rating Silver Gold Plated Pins for Industrial Automation

Product Description:

Servo Motor Connectors are essential components designed to ensure reliable and efficient connections between brushless servo motors and their control systems. These connectors are engineered with high-quality materials, combining metal and plastic to offer both durability and flexibility. The use of metal provides excellent conductivity and mechanical strength, while the plastic parts contribute to insulation and environmental protection, making these connectors ideal for various demanding applications.

One of the key features of these servo motor connectors is their versatile termination types. They support both crimp and solder termination methods, allowing for secure and stable electrical connections. Crimp termination ensures a fast and reliable connection by mechanically deforming the connector to grip the wire firmly. On the other hand, solder termination offers a permanent bond through a melted metallic alloy, which enhances conductivity and reduces resistance. This dual termination compatibility makes these connectors suitable for a wide range of assembly preferences and application scenarios.

The connectors are specifically designed to match the Moog gender configuration, which is a standard in the servo motor industry. This ensures seamless compatibility with Moog brushless servo motors, which are widely recognized for their precision and performance in automation and robotics. By adhering to the Moog gender standard, these connectors guarantee a perfect fit, minimizing the risk of connection issues and enhancing overall system reliability.

Wire gauge compatibility is another important attribute of these servo motor connectors. They accommodate wire sizes ranging from 18 to 24 AWG, as well as larger wires with diameters from 3 to 12 AWG. This wide range of wire gauge support makes them versatile for different power and signal transmission needs in various brushless servo motor applications. Whether dealing with delicate signal wires or thicker power cables, these connectors provide a secure and efficient connection.

Operating temperature range is a critical factor for connectors used in servo motor environments, which often experience significant thermal variations. These connectors are rated to operate reliably in temperatures from -40℃ to +105℃. This broad temperature tolerance ensures that the connectors maintain their performance and structural integrity even in harsh industrial environments or extreme weather conditions. It also makes them suitable for high torque DC servo motor systems that may generate considerable heat during operation.

Brushless servo motors, known for their efficiency, reliability, and low maintenance, require connectors that can keep up with their performance demands. These servo motor connectors are designed to support the high-speed signals and power requirements of brushless servo motors, ensuring minimal signal loss and stable power delivery. Their robust construction and precise engineering help maintain the integrity of the electrical connection, which is crucial for the smooth operation of brushless servo motors in applications such as robotics, CNC machinery, and automated manufacturing systems.

High torque DC servo motors also benefit greatly from these connectors. High torque motors typically demand higher current and more robust electrical connections to handle the increased load. The combination of metal and plastic materials in these connectors provides the necessary strength and conductivity to support these high-power motors. Additionally, the ability to work within a wide temperature range ensures that even under intense operational conditions, the connectors will not degrade or fail.

In summary, these servo motor connectors offer a comprehensive solution for connecting brushless servo motors and high torque DC servo motors with their control and power systems. Their durable metal and plastic construction, versatile crimp and solder termination options, Moog gender compatibility, wide wire gauge range, and excellent operating temperature rating make them an indispensable component in any servo motor setup. Whether in industrial automation, robotics, or precision machinery, these connectors provide the reliability and performance needed to ensure optimal motor function and longevity.

Features:

• Product Name: Servo Motor Connectors
• Mounting Type: Panel Mount / Cable Mount
• Contact Plating: Silver Pin, Golded Pin
• Name: Moog ITT Connector
• Operating Temperature Range: -40℃ to +105℃
• Wire Gauge Compatibility: 18-24 AWG or more, AWG 3-12 Diameter
• Designed for reliable connection with AC Servo Motor Driver
• High durability suitable for AC Servo Motor Driver applications
• Optimized performance to support AC Servo Motor Driver efficiency

Technical Parameters:

Applications:

The NO MARK servo motor connector, model number "servo motor connector," is a highly reliable and versatile product originating from China. Certified by CE and ISO9001, it ensures top-notch quality and safety standards, making it an excellent choice for various industrial and commercial applications. Designed to support brushless servo motors and DC servo motor drives, this connector is essential in establishing secure and efficient electrical connections within servo motor systems.

With an impressive insulation resistance and a voltage rating of 1000V, the NO MARK servo motor connector guarantees stable performance even under demanding electrical conditions. It features a 10PIN configuration, tailored to accommodate the complex wiring requirements of brushless servo motors and DC servo motor drives. The connector's gender is specified as Moog, and it supports Omrons Domestic contacts, which are known for their durability and reliability in high-performance applications.

Operating effectively within a temperature range of -40℃ to +105℃, this servo motor connector is suitable for diverse environments, from cold storage facilities to high-temperature industrial settings. Its robust construction ensures consistent connectivity and prevents signal loss or interference, which is critical for the precise control needed in servo motor operations.

The NO MARK servo motor connector is ideal for use in a wide variety of application occasions and scenarios. It is commonly utilized in automated machinery, robotics, CNC equipment, and other systems where brushless servo motors and DC servo motor drives are employed. These connectors play a vital role in ensuring seamless communication between motor controllers and the motors themselves, thus enhancing the overall efficiency and reliability of the system.

Manufactured with a minimum order quantity of 100 pieces and packaged securely in carton boxes, the product supports a supply ability of 1000 pieces per day, ensuring prompt delivery within 1-3 working days. Payment terms include flexible options such as T/T and PayPal, facilitating easy and convenient transactions for customers worldwide.

In summary, the NO MARK servo motor connector is an indispensable component for anyone working with brushless servo motors and DC servo motor drives. Its high insulation resistance, robust temperature tolerance, and reliable contact design make it suitable for a wide range of industrial and commercial applications, providing dependable performance and peace of mind.

Customization:

Our servo motor connectors, branded NO MARK and model number servo motor connector, are proudly made in China and certified with CE and ISO9001 standards. We specialize in product customization services to meet your specific needs for DC servo motor drive applications, high torque DC servo motor setups, and brushless servo motor systems.

These connectors feature Omrons Domestic contacts with silver and gold-plated pins to ensure reliable conductivity and durability. You can choose between panel mount or cable mount installation types, designed to operate efficiently within a temperature range of -40℃ to +105℃.

We require a minimum order quantity of 100 pieces, with a supply ability of 1000 pcs per day. Products are carefully packaged in carton boxes to guarantee safe delivery. Our delivery time is fast, typically between 1-3 working days, and we accept payment terms via T/T and PayPal.

Whether you need connectors for high precision DC servo motor drives or robust brushless servo motor applications, our servo motor connectors provide excellent performance and customization options tailored to your requirements.

Support and Services:

Our Servo Motor Connectors are designed to provide reliable and secure connections for servo motor applications. These connectors ensure optimal electrical performance, durability, and ease of installation in various industrial environments.

For technical support, we offer comprehensive assistance including product selection guidance, installation instructions, troubleshooting tips, and maintenance recommendations to help you maximize the performance and lifespan of your servo motor connectors.

Our services include custom connector solutions tailored to your specific application requirements, quality assurance testing, and prompt replacement for any defective products under warranty.

We are committed to supporting your projects with expert advice and timely service to ensure your servo motor systems operate efficiently and with minimal downtime.
